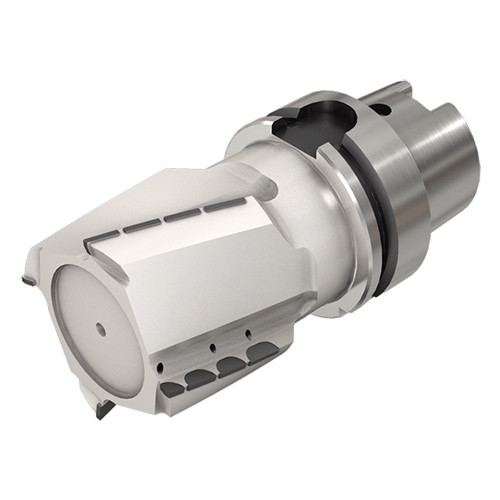

SMN D032-3-30HSK63R-BRR02 ID8
Extended flute endmills with an HSK adaptation on which brazed PCD inserts are mounted for machining aluminum at high rotational speeds with IT.TE.DI. tools
| Cutting Diameter (DC/DCX) | 32 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 31.6 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 32 mm | Application | | Shouldering | |
| Cutting Item Count (CICT) | 3 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 30 mm | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 63 mm |
Product Features
| FamilyDesc | Extended flute endmills with an HSK adaptation on which brazed PCD inserts are mounted for machining aluminum at high rotational speeds with IT.TE.DI. tools | FamilyName | SMN D-HSK IT |
| Remarks | A cooling tube must be used with all internal coolant HSK spindles (to be order separately) Important: When machining at very high cutting speeds and the insert needs replacing, it is also recommended to replace the screws Insert tightening torque: 6 (Nxm) | BrandName | Iscar |
| COO | Italy |
Shipping Info
Name
Indexable Face Mills
FamilyName
SMN D-HSK IT
BrandName
Iscar
