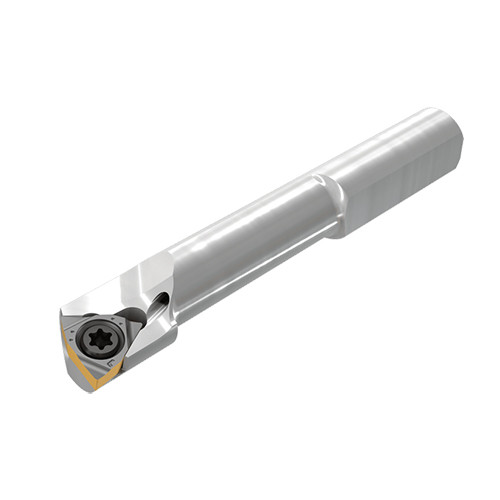

PICIN A06-T25-SWUBL-06
PICCO Tools on which Small WBMT/WBGT Trigon Inserts are mounted
| Connection Diameter Machine Side (DCONMS) | 6 mm | Shank Height (H) | 5.4 mm |
| Minimum Bore Diameter (DMIN) | 6.5 mm | Body Material | Steel |
| Functional Length (LF) | 40 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Cutting Direction (HAND) | Left Hand | Rake Angle Radial (GAMF) | 15 Degrees |
| Application | | Int. 80° Trigon 93° Approach | | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 3.25 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | WBMT 060101R | Unit | M |
| Usable Length (LU) | 25 mm |
Product Features
| FamilyDesc | PICCO Tools on which Small WBMT/WBGT Trigon Inserts are mounted | FamilyName | PICIN-A-SWUBR/L |
| Remarks | Use right-hand WBMT 06...R inserts on left-hand tools and left-hand WBMT 06...L inserts on right-hand tools | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.0280
Name
Solid Boring Bars
FamilyName
PICIN-A-SWUBR/L
BrandName
Iscar
