PICIN E06-T25-MGSIR-06

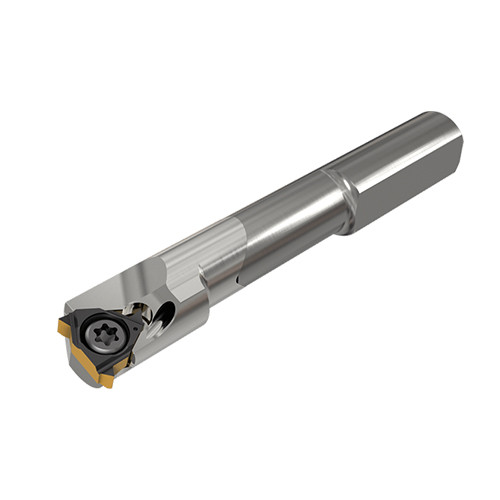

Solid Carbide PICCO Tools on which Internal Laydown Threading Inserts are Mounted for 7.3 mm minimum bore diameter

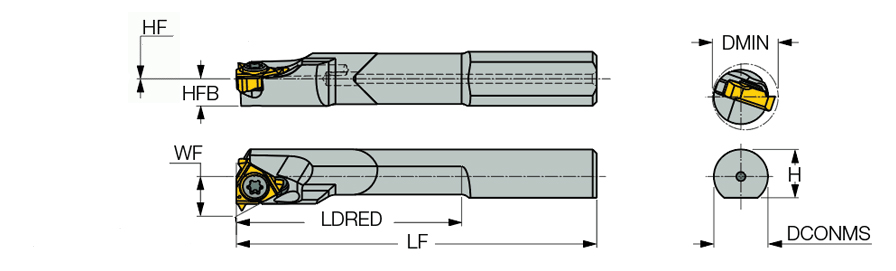

| Connection Diameter Machine Side (DCONMS) | 6 mm | Shank Height (H) | 5.4 mm |
| Minimum Bore Diameter (DMIN) | 7.3 mm | Body Material | Carbide |
| Functional Length (LF) | 40 mm | Rake Angle Axial (GAMP) | -2 Degrees |
| Cutting Direction (HAND) | Right Hand | Rake Angle Radial (GAMF) | -18.5 Degrees |
| Application | | Internal Threading lay down | | Tool Type | Internal Indexable Threading Tools |
| Functional Width (WF) | 4.41 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | 06IR A 55 | Unit | M |
| Usable Length (LU) | 25 mm |
Product Features
| FamilyDesc | Solid Carbide PICCO Tools on which Internal Laydown Threading Inserts are Mounted for 7.3 mm minimum bore diameter | FamilyName | PICIN-MGSIR/L |
| Remarks | B-steel shank with coolant hole, CB-carbide shank with coolant hole All toolholders provide 1.5 helix angle, either via the pocket or the anvil supplied For GTGA inserts, use anvil AL 16-0 | BrandName | Iscar |
| COO | Japan |
Shipping Info
PackageWeight
0.0290
Name
Solid Boring Bars
FamilyName
PICIN-MGSIR/L
BrandName
Iscar
