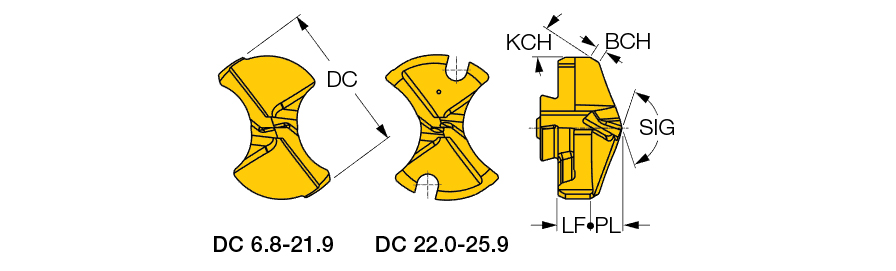

| Cutting Diameter (DC) | 13.5 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Thickness (S) | 6 mm |
| Application | | Drilling | | Point Length (PL) | 2.46 mm |
| Grade | IC908 | Point Angle (SIG) | 140 Degrees |
| Tool Type | Drilling Heads | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 13.0 | Chamfer Angle | 30 Degrees |
| Functional Length (LF) | 3.54 mm | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
Product Features

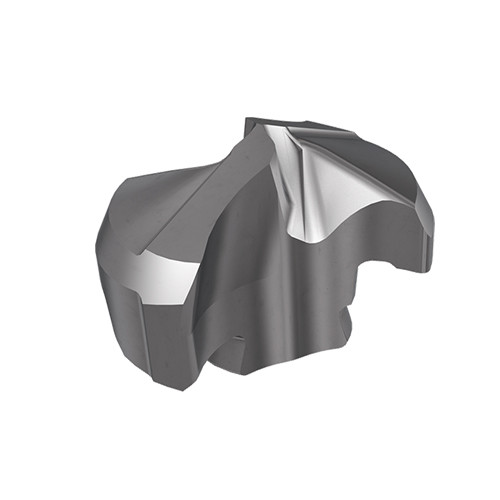

| FamilyDesc | CHAMDRILL DCM drill heads for cast iron | COO | Israel |
Shipping Info
PackageWeight
0.0110
