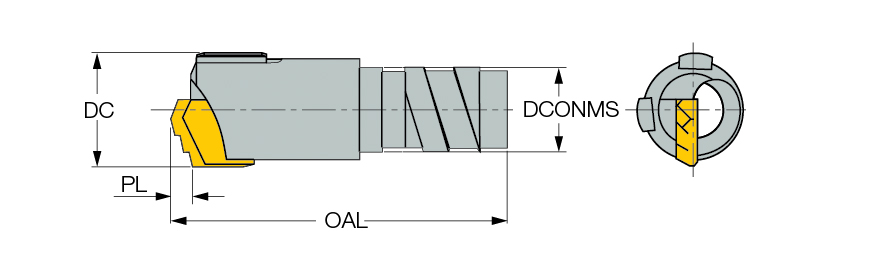

| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 13.5 mm |
| Connection Diameter Machine Side (DCONMS) | 10.8 mm | Cutting Diameter Maximum (DCX) | 14.79 mm |
| Tool Type | Deep Hole / Gun Drill | Measurement Type | Metric |
| Overall Length (OAL) | 35.4 mm | Body Material | Steel |
| Connection Thread Size (Ts) | TS006 | Unit | M |
Product Features
| FamilyDesc | Deep single tube drills with an external single thread connection and a brazed single tip. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | Japan |
| Remarks | The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: P-Steel, M-Stainless Steel, K-Cast Iron. For quotation form and user guide, click on More Info |
