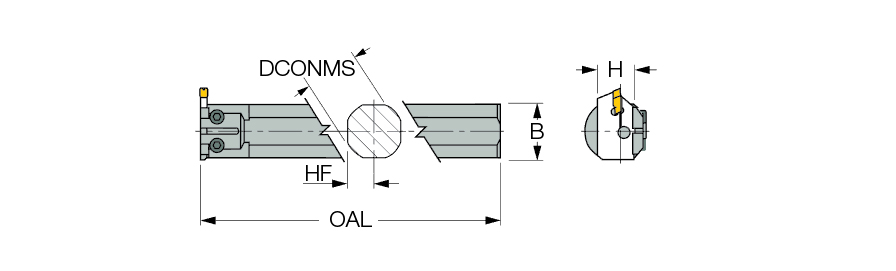

| Shank Height (H) | 1.02″ | Body Material | Steel |
| Shank Width (B) | 1.42″ | Tool Type | ISO A.N.S.I B.5.18-1972 (ISO-ER) |
| Overall Length (OAL) | 10″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Unit | I |
Product Features
| FamilyDesc | Holder bars for internal blades, DMIN=1.96″. | FamilyName | GHIC-50 |
| Remarks | The same tool applies on right and left machining | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
3.5671
Name
Groove/Turn Indexable Holders
FamilyName
GHIC-50
BrandName
Iscar
Related Documentation
Holder bar for indexable blades. Adjustable extension, right- and left-hand applications. For bore diameters down to 50 mm, bar GHIC-50 with blades for GIPI/GIFI inserts.
