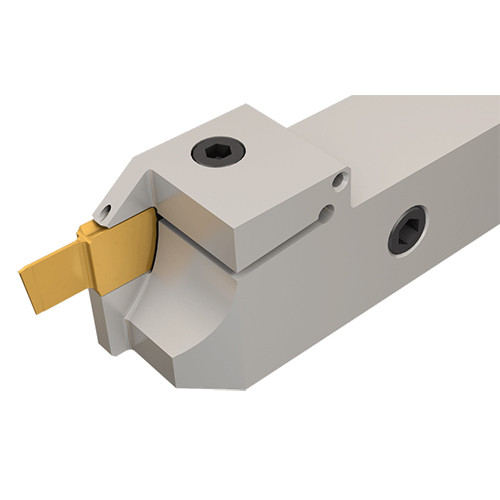

BGTL 25B-D20-JHP
Integral shank reinforced parting and grooving tools with coolant channels carrying narrow double-ended inserts for parting up to 20 mm bars.

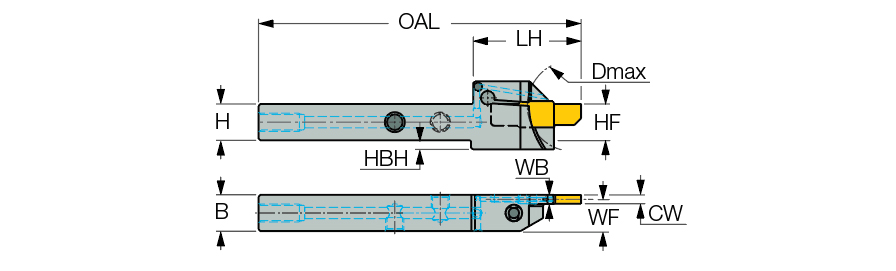

| Shank Height (H) | 25 mm | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Body Width (WB) | 4 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 40 mm |
| Cutting Width Minimum (CWN) | 0.8 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 1.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 142 mm | Functional Width (WF) | 23 mm |
| Head Length (LH) | 47.5 mm | Tool Assembly Length (LTA) | 57.7 mm |
| Cutting Depth Maximum (CDX) | 20 mm | Unit | M |
Product Features
| FamilyDesc | Integral shank reinforced parting and grooving tools with coolant channels carrying narrow double-ended inserts for parting up to 20 mm bars. | FamilyName | BGTR/L-B-JHP |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
0.6580
Name
Parting Off Indexable Holders
FamilyName
BGTR/L-B-JHP
BrandName
Iscar
