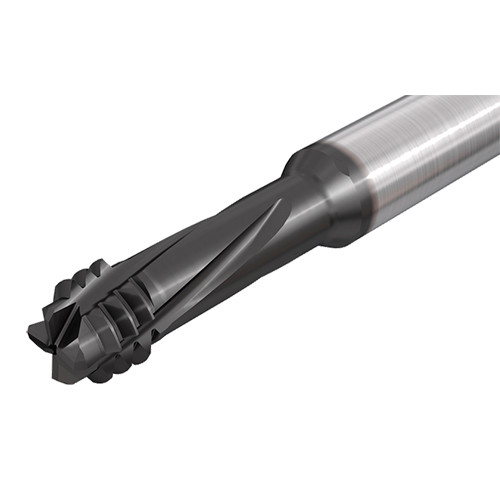

MTECD 06033C12 36UN IC908

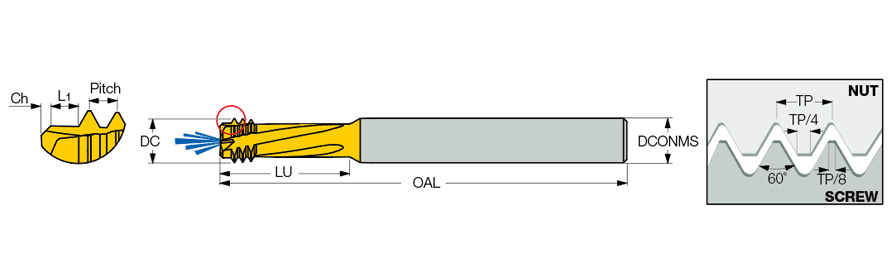

| Thread Size | 8 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 36 | Cutting Edge Material | Carbide |
| Thread Standard | THFT | | Usable Length (LU) | 12 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 3.3 mm | Grade | IC908 |
| Overall Length (OAL) | 58 mm | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 3 | Corner Chamfer Width (CHW) | 0.2 mm |
| Coolant Supply Property (CSP) | External | Body Material | Carbide |
| Shank Type | Round | Thread Form Type (THFT) | UN60 |
| Coating | TiAlN | Unit | M |
| Application | | Chamfering | Drilling | Internal Thread Milling | |
Product Features
| FamilyDesc | Small diameter short left-hand (CNC code M04) solid carbide internal UN profile drilling threading and chamfering endmills. High cutting speeds, low cutting forces due to the short contact resulting in accurate and parallel thread. | COO | Israel |

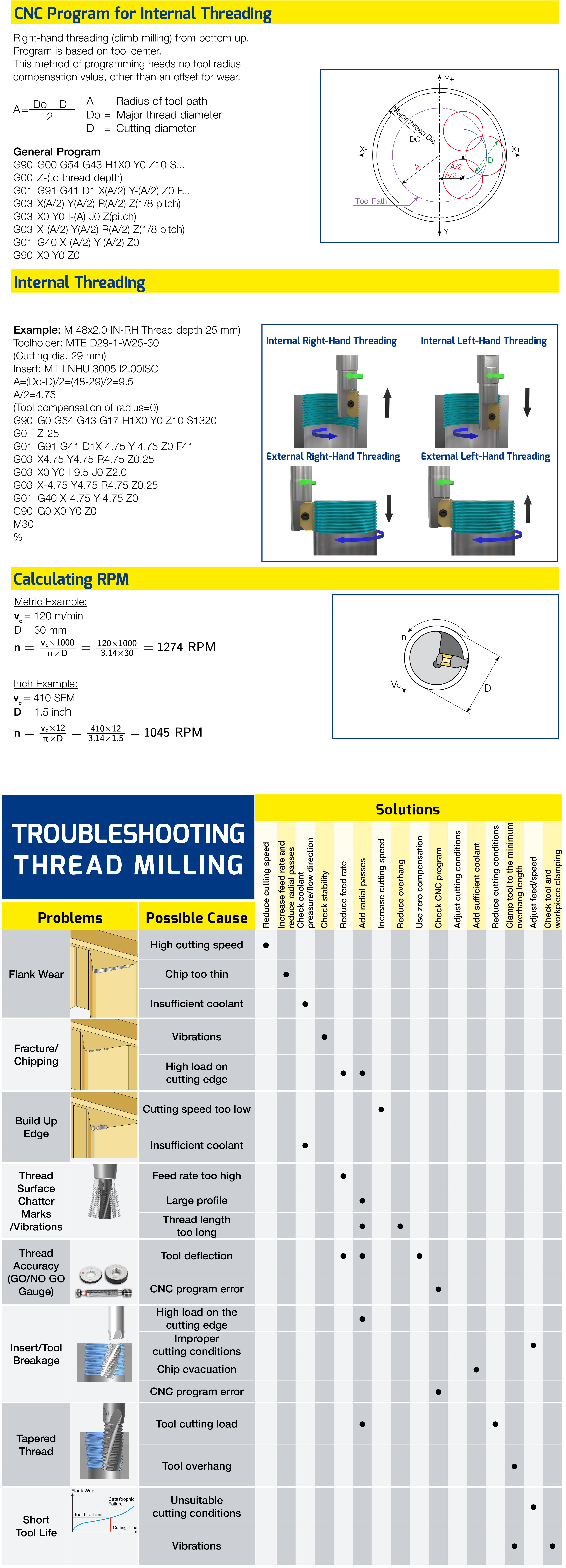

| Remarks | Thread hole, thread and chamfer are made by circular interpolation |
Shipping Info
PackageWeight
0.0260
