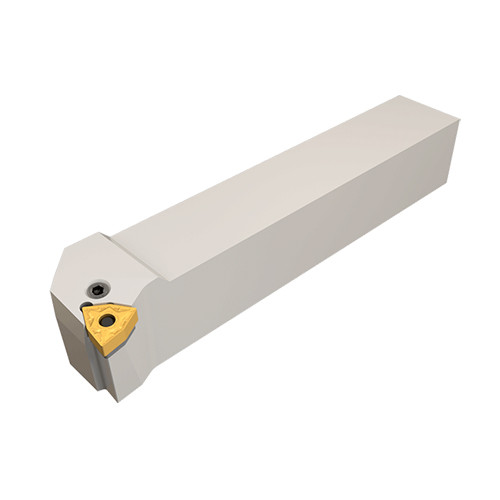

PWLNR 1616H-06S
Lever lock external turning tools carrying 80° negative trigon inserts.

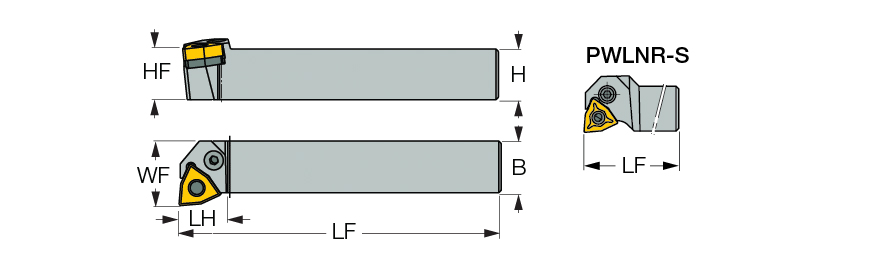

| Shank Height (H) | 16 mm | Application | | Ext. 80° Trigon 95° Approach | |
| Shank Width (B) | 16 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 100 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 20.3 mm | Body Material | Steel |
| Functional Width (WF) | 16 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Master Insert Identification (MIID) | WN..06T3 |
Product Features
| FamilyDesc | Lever lock external turning tools carrying 80° negative trigon inserts. | FamilyName | PWLNR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
0.2420
Name
General Indexable Turning Tools
FamilyName
PWLNR/L
BrandName
Iscar
