CNMG 160612-MR IC8150

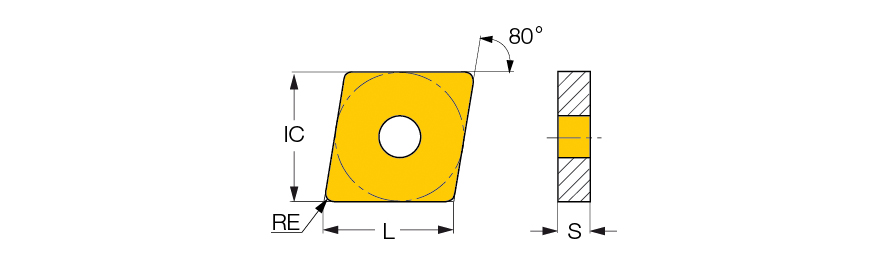

Double-sided 80° rhombic inserts with a positive rake angle. Used for rough turning on stainless steel and soft materials.
| Applicable Material | | Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Min D.O.C. | 2 mm |
| Corner Radius (RE) | 1.2 mm | Depth of Cut Maximum (APMX) | 10 mm |
| Insert Size | 543-MR | Min. Turning Feed (ft(min)) | 0.3 mm/rev |
| Cutting Edge Length (L) | 16.12 mm | Max. Turning Feed (ft(max)) | 0.9 mm/rev |
| Insert Thickness (S) | 6.35 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 15.88 mm | Chip Breaker Type | MR |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiCN+TiN | Body Material | Carbide |
| Grade | IC8150 | Unit | M |
| Fixing Hole Diameter (D1) | 6.35 mm |
Product Features
| FamilyDesc | Double-sided 80° rhombic inserts with a positive rake angle. Used for rough turning on stainless steel and soft materials. | FamilyName | CNMG-MR |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.0216
Name
Turning Indexable Inserts
FamilyName
CNMG-MR
BrandName
Iscar
