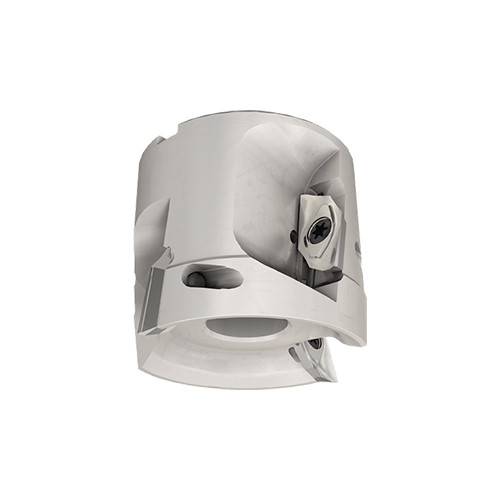

SM D2.50-1.18-1.00-16
Extended flute shell mills carrying HM90 APCR 1605... inserts for machining aluminum
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Coolant Supply Property (CSP) | Coolant Thru |

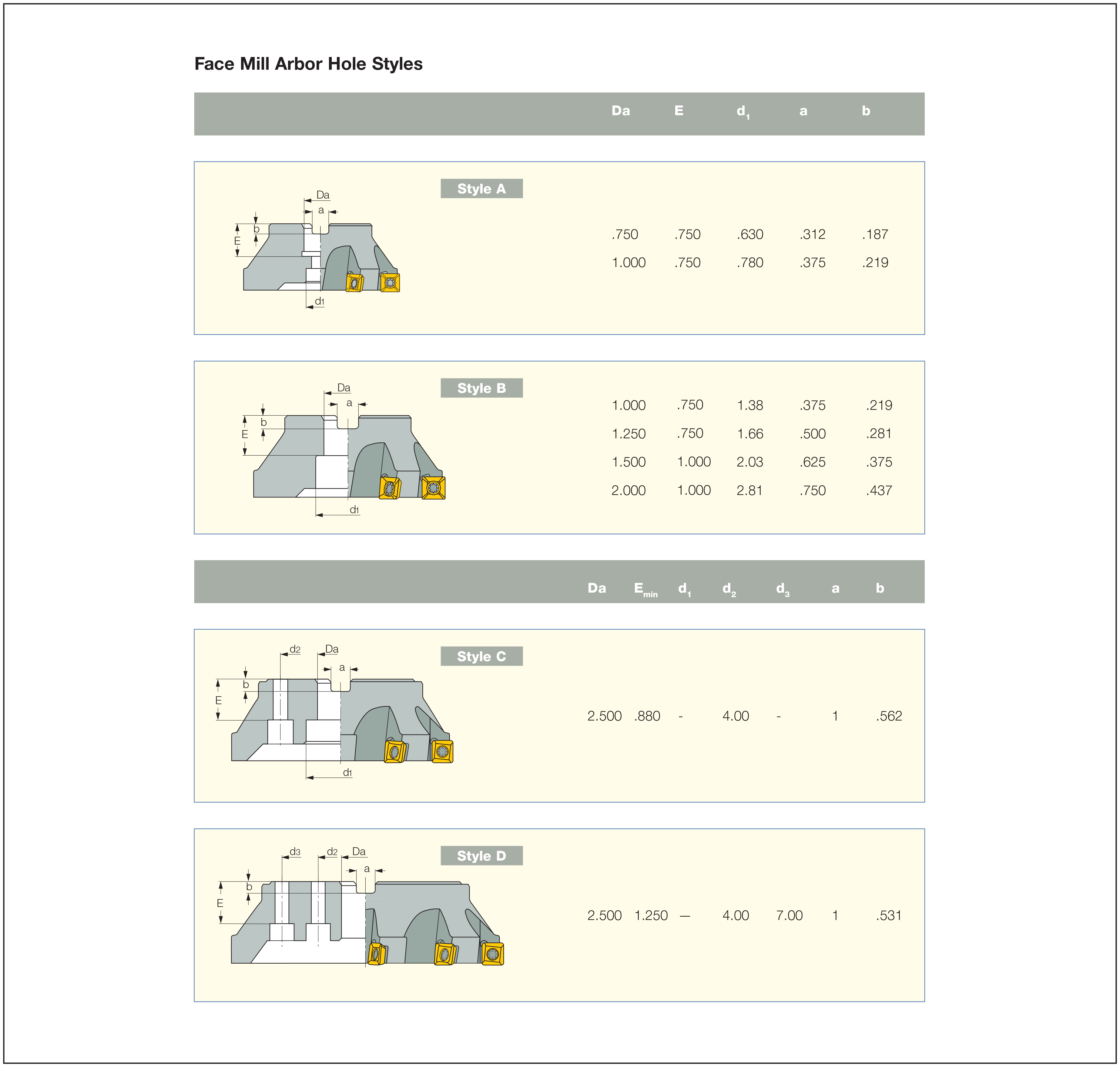

| Cutting Item Count (CICT) | 4 | Arbor Style | A |

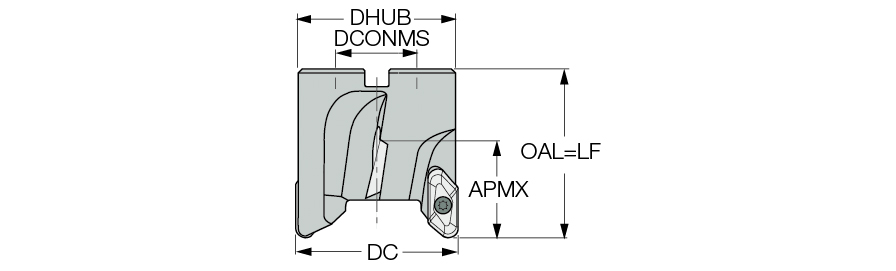

| Depth of Cut Maximum (APMX) | 1.18″ | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 2-1/2″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Flute Count (NOF) | 2 | Tool Type | Extnd. flute for Aluminum |
| Overall Length (OAL) | 2.16″ | Hub Diameter (DHUB) | 2.36″ |
| Master Insert Identification (MIID) | HM90 APCR 160502R-P | Unit | I |
Product Features
| FamilyDesc | Extended flute shell mills carrying HM90 APCR 1605... inserts for machining aluminum | FamilyName | SM-16 |
| Remarks | When machining at very high cutting speeds (RPM>15000) and replacing the insert, it is also recommended to replace the screw Insert tightening torque: 53 (lbf x in) For inserts size 16 with a corner radius larger than .157, the corner of the pocket must conform to the formula (R body = R insert + .02) | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
1.8960
Name
Shell Mills
FamilyName
SM-16
BrandName
Iscar
