S32T DCLNL-12

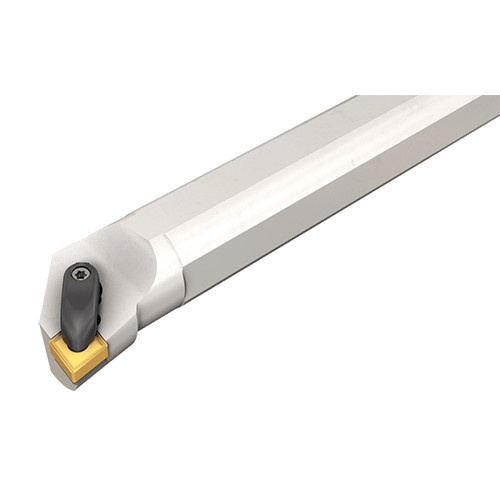

R-Clamp boring bars carrying negative 80° diamond inserts.
| Connection Diameter Machine Side (DCONMS) | 32 mm | Application | | Int. 80° Diamond 95° Approach | |
| Overall Length (OAL) | 300 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Reduced Body Diameter Length (LDRED) | 45 mm | Rake Angle Radial (GAMF) | -10 Degrees |
| Shank Height (H) | 28 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 22 mm | Body Material | Steel |
| Master Insert Identification (MIID) | CNMG 1204.. | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 40 mm | Unit | M |
| Cutting Direction (HAND) | Left Hand |
Product Features
| FamilyDesc | R-Clamp boring bars carrying negative 80° diamond inserts. | FamilyName | S-DCLNR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
1.7770
Name
Indexable Internal Turning Tools
FamilyName
S-DCLNR/L
BrandName
Iscar
