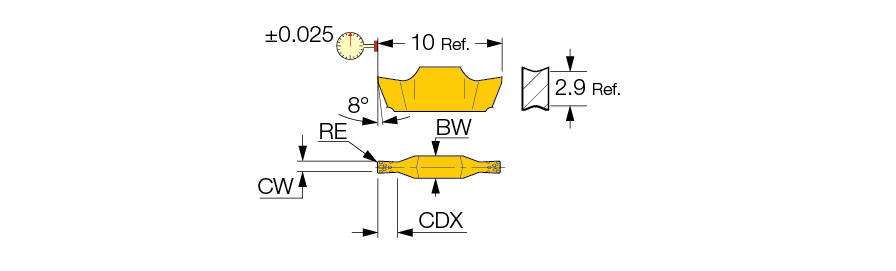

| Cutting Width (CW) | 1.04 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0 mm | Max. Grooving Feed (fg(max)) | 0.03 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.03 mm | Min. Grooving Feed (fg(min)) | 0.01 mm/rev |
| Overall Length (OAL) | 10 mm | Chip Breaker Type | FT |
| Insert Length (INSL) | 10 mm | Tool Type | Groove-Turn Precision Inserts |
| Cutting Depth Maximum (CDX) | 1.6 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN | Cutting Width Tolerance (+/-) (CWTOL) | 0.02 mm |
| Grade | IC908 | Insert Width (W1) | 1.8 mm |
| Application | | Int. Grooving (side limit) | | Unit | M |
Product Features

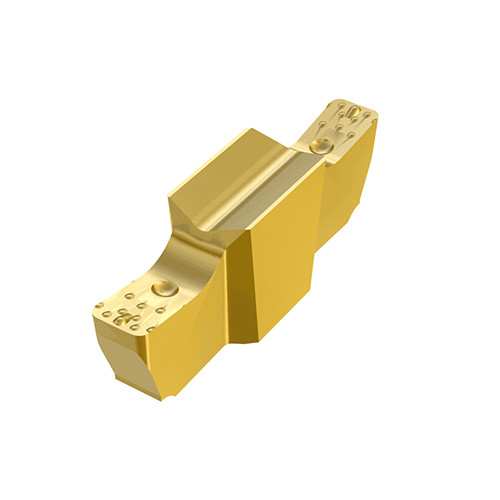

| FamilyDesc | Precision double-ended inserts, used for internal grooving at low feeds in diameters from 11.5mm | FamilyName | GEPI (W<M) |
| Remarks | E12 GEHIR 16-1 seat needs to be modified according to insert profile to ensure clearance DMIN for internal application=11.5 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.0020
Name
Parting Off Indexable Inserts
FamilyName
GEPI (W<M)
BrandName
Iscar
